Best Price Hot Dipped /Galvanized Barbed Wire for factory

Short Description:

Name:HEBEI Best Price Hot Dipped Galvanized Barbed Wire for factory
Material:  Galvanized iron wire,PVC coated iron wire
Weaving and character:  TwIst and weaving
Usage:  Barbed Iron Wire offered by us is suitable for industry, agriculture, animal husbandry,
dwelling house, plantation or fencing,such as protection of grass boundary,railway,highway,etc.
Specification:  Diameter:BWG10-BWG18, Barb spacing :3"-6"


Product Detail

Product Tags

Barbed wire is a defensive metal wire, and the body is covered with a sharp edge, and there is also the same distance between the spikes. It is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of fence or in rows as an independent barrier. This type of wire is economic and easy to install.

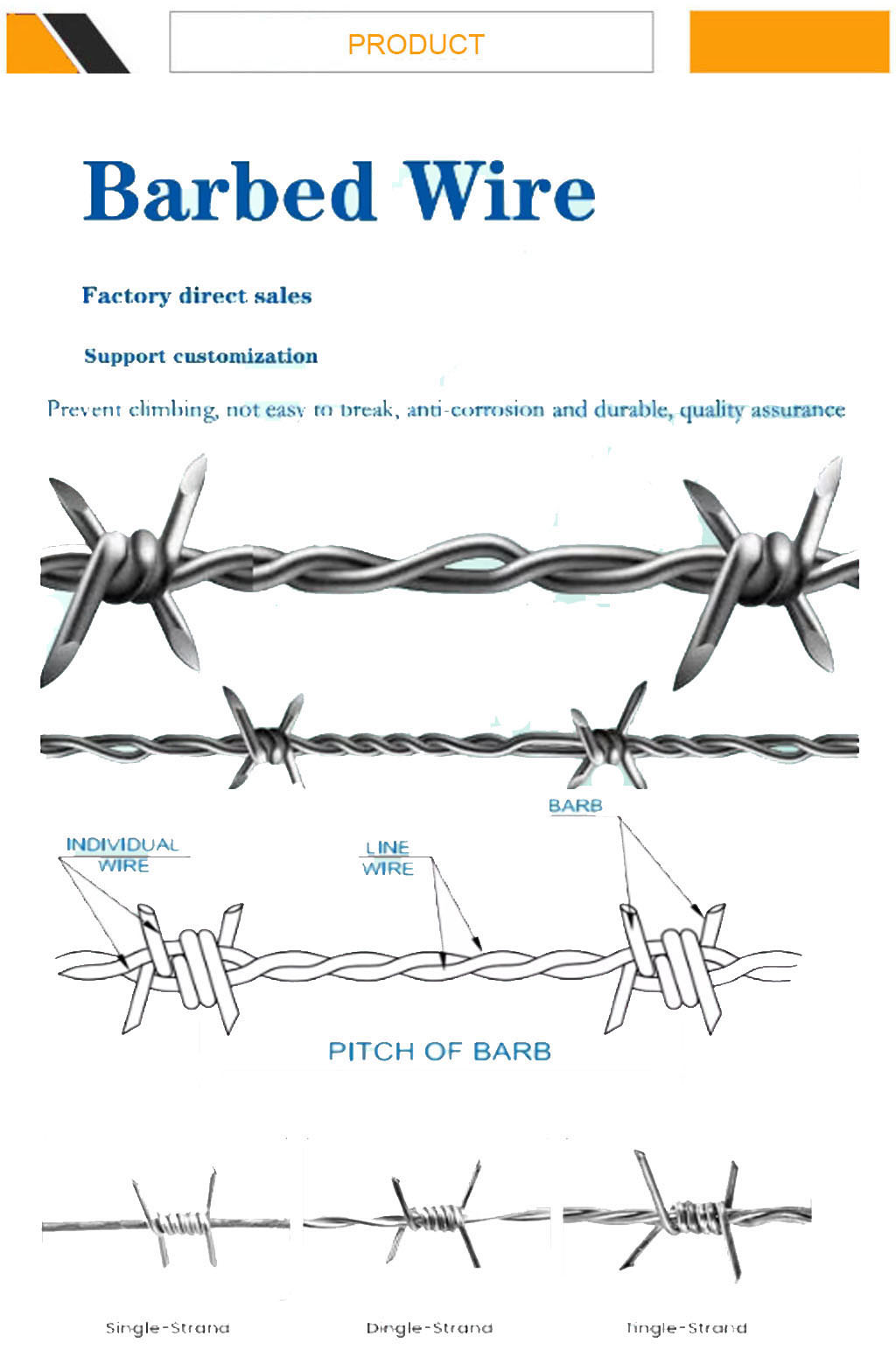

The barbed wire consists of barb wire and line wire. The wire diameter of line wire is larger. Using the two twisted line wires can improve the quality of fastening studs and prevent the displacement along the wire.On a single strand barbed wire, in order to avoid spikes rotate around horizontal wire, the horizontal wire is made by corrugations and its cross section is not circular.To prevent corrosion, barbed wire has a zinc coating.

Currently, double twist barbed wire been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Specification
The barb wires are braided with a system of constant torsion around line wire. One barb wire forms two spikes and two pieces of wire-four spikes. The sharpened spikes are protective elements of barbed wire. Its high resistance allows greater spacing between the fencing posts. It used for grass boundary, railway, highway isolation protection.
Structure
1.Traditional Twist Type
2.Single Line Wire & Reverse Twist
3.Double Line Wire & Reverse Twist
4.Pvc Main Wire With Galvanized

 type

Wire guage

Barb distance

Barb length

Galvanized barbed wire

10# x 12#

7.5-15cm

1.5-3cm

12# x 12#

7.5-15cm

1.5-3cm

12# x 14#

7.5-15cm

1.5-3cm

14# x 14#

7.5-15cm

1.5-3cm

14# x 16#

7.5-15cm

1.5-3cm

16# x 16#

7.5-15cm

1.5-3cm

16# x 18#

7.5-15cm

1.5-3cm

Pvc coated barbed wire

Before coating

After coating

1.0mm-2.8mm

1.4mm-4.0mm

7.5-15cm

1.5-3cm

Bwg11#-20#

微信截图_20240705082650

微信截图_20240705083212

微信截图_20240705083155
